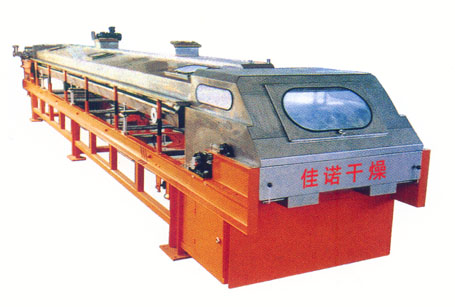

RL melt granulation machine is the use of low-melting-point materials properties, according to material viscosity molten state at the time of the scope of the fabric through a special device to melt the bottom of fluid in his uniform uniform movement of the strip, set up in the bottom of the continuous strip the role of spray cooling device, the materials in the transportation, movement process cooling, curing, packing, so as to achieve the purpose of forming granulation.
Product Overview
RL melt granulation machine is the use of low-melting-point materials properties, according to material viscosity molten state at the time of the scope of the fabric through a special device to melt the bottom of fluid in his uniform uniform movement of the strip, set up in the bottom of the continuous strip the role of spray cooling device, the materials in the transportation, movement process cooling, curing, packing, so as to achieve the purpose of forming granulation.
RL melt granulation machine) is a new type (of melting) granulation molding machine. By varying the cooling liquid by the transfer of solid, melting point range of 50 ℃ -300 ℃ granulation molding material can be. No dust, improve the production environment; and the economic value of a certain (energy, packaging container economy) replacement products fast, granular product made from beautiful, nearly uniform hemispherical granular, non-thermal stress; granular product is easy to packaging, transportation, storage, measurement and user-friendly, mixed or re-fused to continuous production. Progressive expect from the packaging, to reduce manual labor, with stepless speed regulation, adjustable volume, easy to operate. Widely used in petroleum, fine chemical industry. A multi-purpose machine-made strip, cut, flake; toxic materials can be closed.
Equipment characteristics

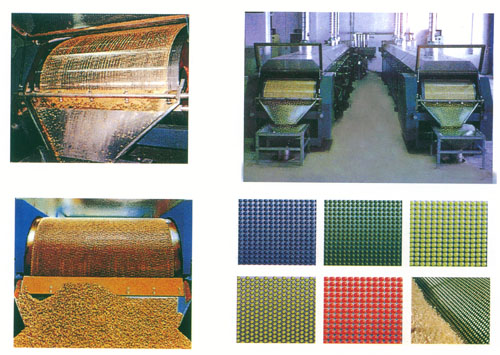

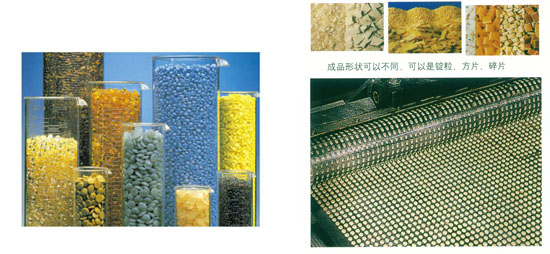

RL melt granulation machine is a new type (of melting) granulation molding machine. The use of thin steel atomized spray cooling heat transfer and fluid to enable rapid solidification melt molding, using a single rotating shell. Therefore facilitate the maintenance, wear very little, with high productivity. Quick handling and replacement of products. And drop-casting and steel high-speed synchronous operation can produce homogeneous ingots tablets, improve productivity, increase production profits. Able to eliminate dust and improve the environment, significantly expanded the scope of the viscosity. The product is an economic and reliable production process, to the processing of the ingot Φ4-12mm tablets, these products are very uniform, showing hemispherical, strip and sheet, stable, non-thermal stress and high purity quality.
Production structure
1. According to the melting point of processed products (freezing point), materials, temperature and viscosity of the different cooling effect, to select the transmission speed and head speed, so as not to affect the quality of production capacity and granular.

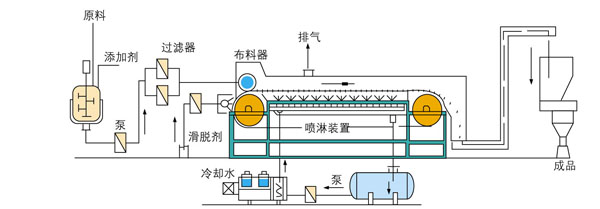

It changed from liquid granular solid, mainly through the die granulation granulation, the use of continuous rotating through the cooling water spray type, stainless steel with the completion of cooling, transportation, packaging is generally more than 1-3 kg / cm2.
2. According to the melting point of processed products (freezing point), materials, temperature and viscosity of the different cooling effect, to select the transmission speed and head speed, so as not to affect the quality of production capacity and granular.
It changed from liquid granular solid, mainly through the die granulation granulation, the use of continuous rotating through the cooling water spray type, stainless steel with the completion of cooling, transportation, packaging is generally more than 1-3 kg / cm2.
DSL Condensation Pelletizer Belt (RL melt granulating machine) - the technical requirements

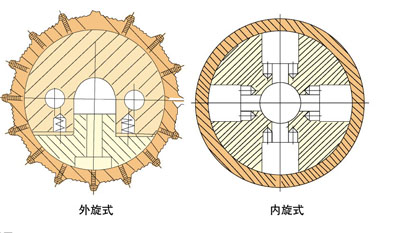

Materials will be required to filter solid impurities can not enter inside the granulator head, otherwise it will create wear and tear or blockage of the nose, the impact of grain quality.
Temperature control should be set according to the melting point temperature, temperature changes may not require insulation. More than ± 3 ℃. Cooling system should filter, cooling water temperature is normally between 5 ℃ -25 ℃ (low temperature, rapid prototyping, granular, and high yield).
Technical parameters
|
型號 |
RL60-A |
RL60-B |
RL60-C |
RL60-D |
RL120-A |
RL120-B |
RL120-C |
RL120-D |
|
有效傳熱面積(m) |
2.6 |
3.6 |
4.6 |
5.3 |
7.3 |
9.3 |
10.8 |
16.6 |
|
主/輔電機功率(kw) |
1.5/0.75 |
1.5/0.75 |
1.5/1.1 |
1.5/1.1 |
3/1.5 |
3/1.5 |
3/1.5 |
4/2.2 |
|
外形尺寸(mm) |
5600×1200
×1800 |
7200×1200
×1800 |
8800×1200
×1800 |
10050×1200
×1800 |
7200×1700
×1800 |
8800×1700
×1800 |
10050×1700
×1800 |
14800×1700
×1800 |
|
生產能力(kg/h) |
80-100 |
100-150 |
120-180 |
150-250 |
300-380 |
360-420 |
380-500 |
500-800 |
|
總重(kg) |
1360 |
1580 |
1880 |
2060 |
2380 |
2590 |
2830 |
4210 |
