Applications

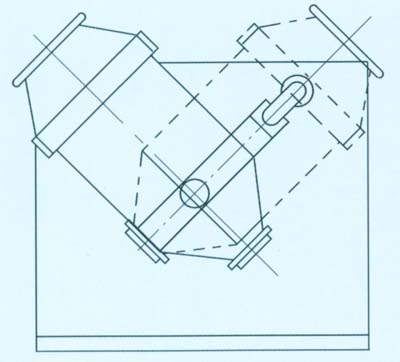

       The mixing barrel of the machine moves in multi-direction. For the materials, there is no centrifugal function, without the specific gravity segregation and the layer division. For each of build-up phenomenon, there is the remarkable weight rate.
       The mixing rate is up to 100%.The machine id the desired product in various mixers at present.
       The material charge rate of barrel is big. Maximum rate can be up to 90%(the normal mixer has only 40% charge rate.). It is high in efficiency and short in the mixing time.
The barrel adopts arc shape connections and its well polished.
The machine is used for mixing the powder state and grain state materials with the high uniformity in the pharmaceutical, chemical, food, light-industry, electronic, mechanical, metallurgical, nation defense industries and other science and technology institutes.

Technical paramenters

spec	SHY-5	SHY-15	SHY-50	SHY-100	SHY-200	SHY-400	SHY-600	SHY-800	SHY-1000	SHY-1200	SHY-1500	SHY-2000
volume of barrel(L)	5	15	50	100	200	400	600	800	1000	1200	1500	2000
charge volume (L)	4.5	13.5	45	90	180	360	540	720	900	1080	1350	1800
charge weight(kg)	1.5-2.7	4-8.1	15-27	30-54	50-108	100-216	150-324	200-432	250-540	300-648	400-810	500-1080
ratation speed of main shaft(r/min)	0-20	0-20	0-20	0-20	0-15	0-15	0-13	0-10	0-10	0-9	0-9	0-8
motor powder(Kw)	0.25	0.37	1.1	1.5	2.2	4	5.5	7.5	11	11	15	18.5
size LxWxH(mm)	600×1000 ×1000	800×1200 ×1000	1150×1400 ×1300	1250×1800 ×1550	1450×2000 ×1550	1650×2200 ×1550	1850×2500 ×1750	2100×2650 ×2000	2150×2800 ×2100	2000×3000 ×2260	2300×3200 ×2500	2500×3600 ×2800
weight(kg)	100	200	300	800	1200	1200	1500	1700	1800	2000	2400	3000
